INTRODUCTION
Whether it's tire removal, chassis inspection, vehicle washing, or vertical vehicle storage, Two-Post Car Lifts can flexibly adapt to your every need. The equipment is robust and reliable, meeting both professional maintenance and creative modifications and space optimization, making your work more efficient and labor-saving, and easily expanding your operational possibilities.FEATURES
- Laser-cut 5 mm columns with a large 470 × 390 × 16 mm base.
- Dual-side manual release system.
- Optional 24 V safety electronic control box.
- Shot-blasted surface treatment with advanced outdoor-grade automatic electrostatic powder coating for an aesthetic and durable finish.
- Manufactured using advanced processing equipment, including CNC bending machines, laser plate cutters, laser tube cutters, plasma cutting machines, and welding robots, ensuring precise dimensions and a smooth finish.
SPECIFICATIONs
| Model | DF-Two Sides-40A | DF-One Side-40B | DF-One Side-45AS | DF-Electric-40C | |
|---|---|---|---|---|---|
| Lifting Capacity | KG | 4000 | 4000 | 4500 | 4000 |
| Lifting Height | mm | 1900 | 1900 | 1900 | 1900 |
| Min. Height | mm | 110 | 110 | 110 | 110 |
| Lifting Time | s | 50–60 | 50–60 | 50–60 | 50–60 |
| Pass Width | mm | 2500 | 2500 | 2700 | 2500 |
| Inner Column Width | mm | 2800 | 2800 | 3000 | 2800 |
| Total Width | mm | 3380 | 3380 | 3550 | 3380 |
| Motor Power | 2.2 kW / 380 V or 2.2 kW / 220 V | 2.2 kW / 380 V or 2.2 kW / 220 V | 2.2 kW / 380 V or 2.2 kW / 220 V | 2.2 kW / 380 V or 2.2 kW / 220 V | |
| Rated Oil Pressure | MPa | 24 | 24 | 24 | 24 |
| Weight | kg | 595 | 610 | 619 | 620 |
The above is the specification table for Two-Post Car Lifts.
Parts Details

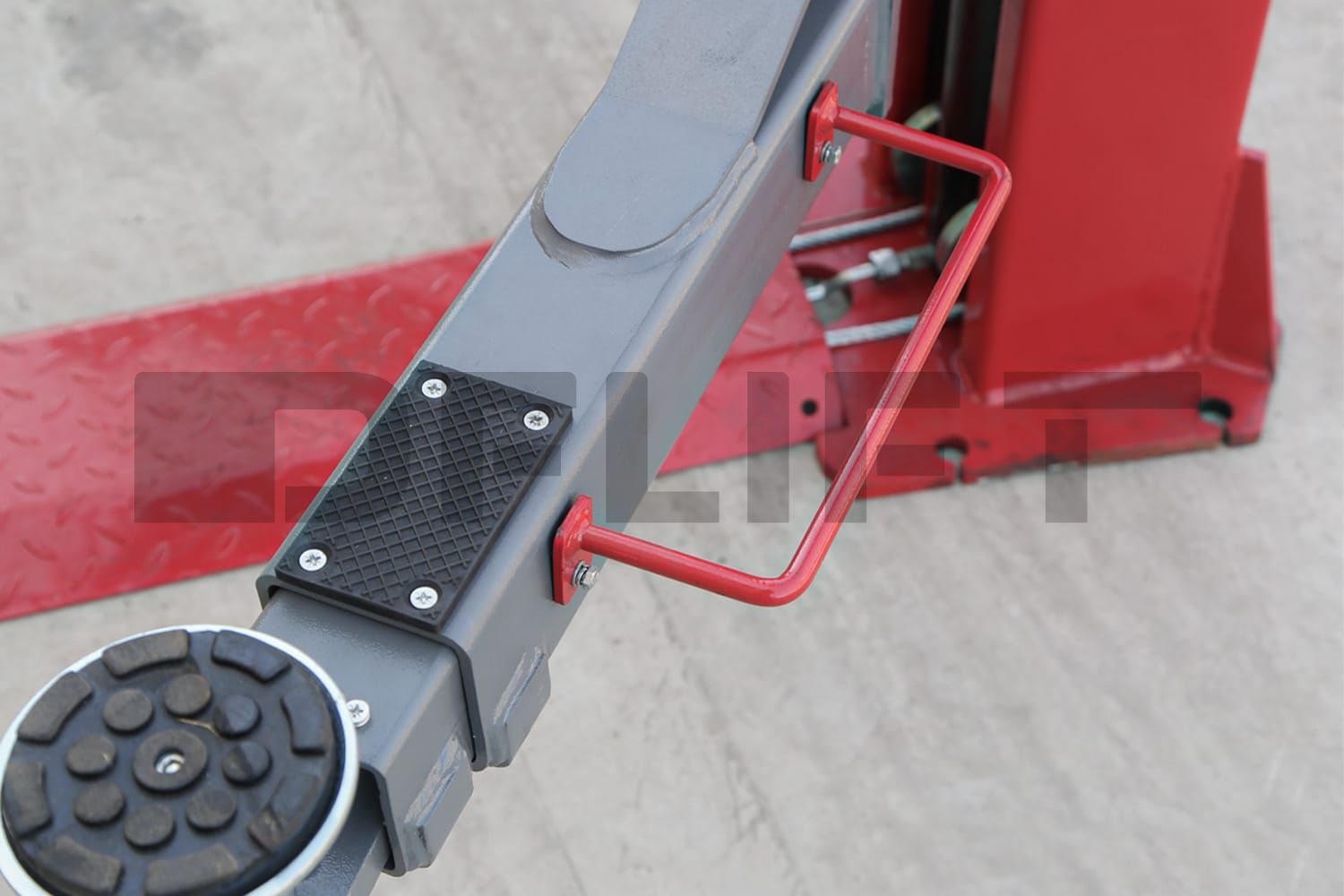

Anti-pinch foot guard

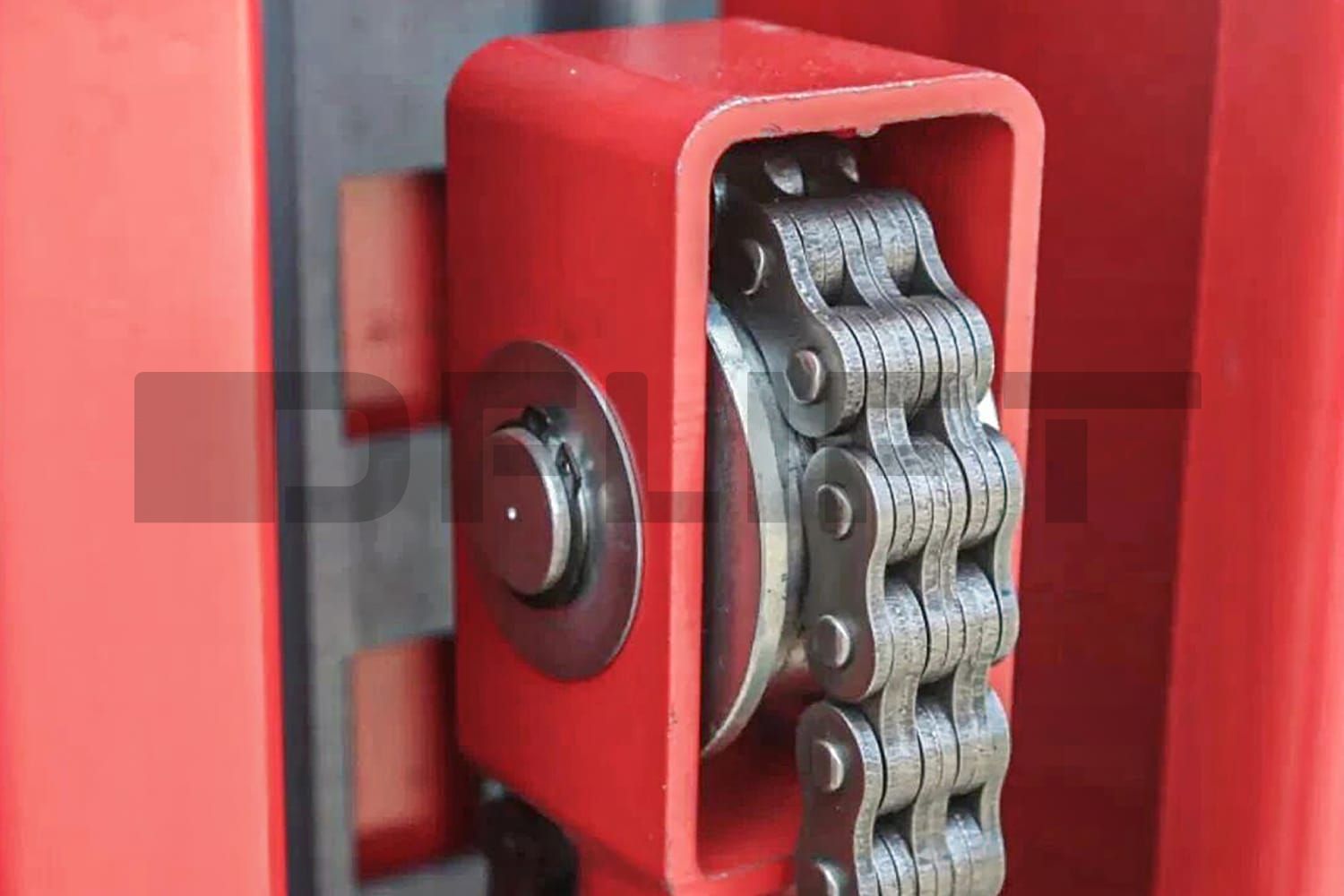

Chain anti-derailment device
Dustproof and rustproof cover channel
Integrated plate-type trolley

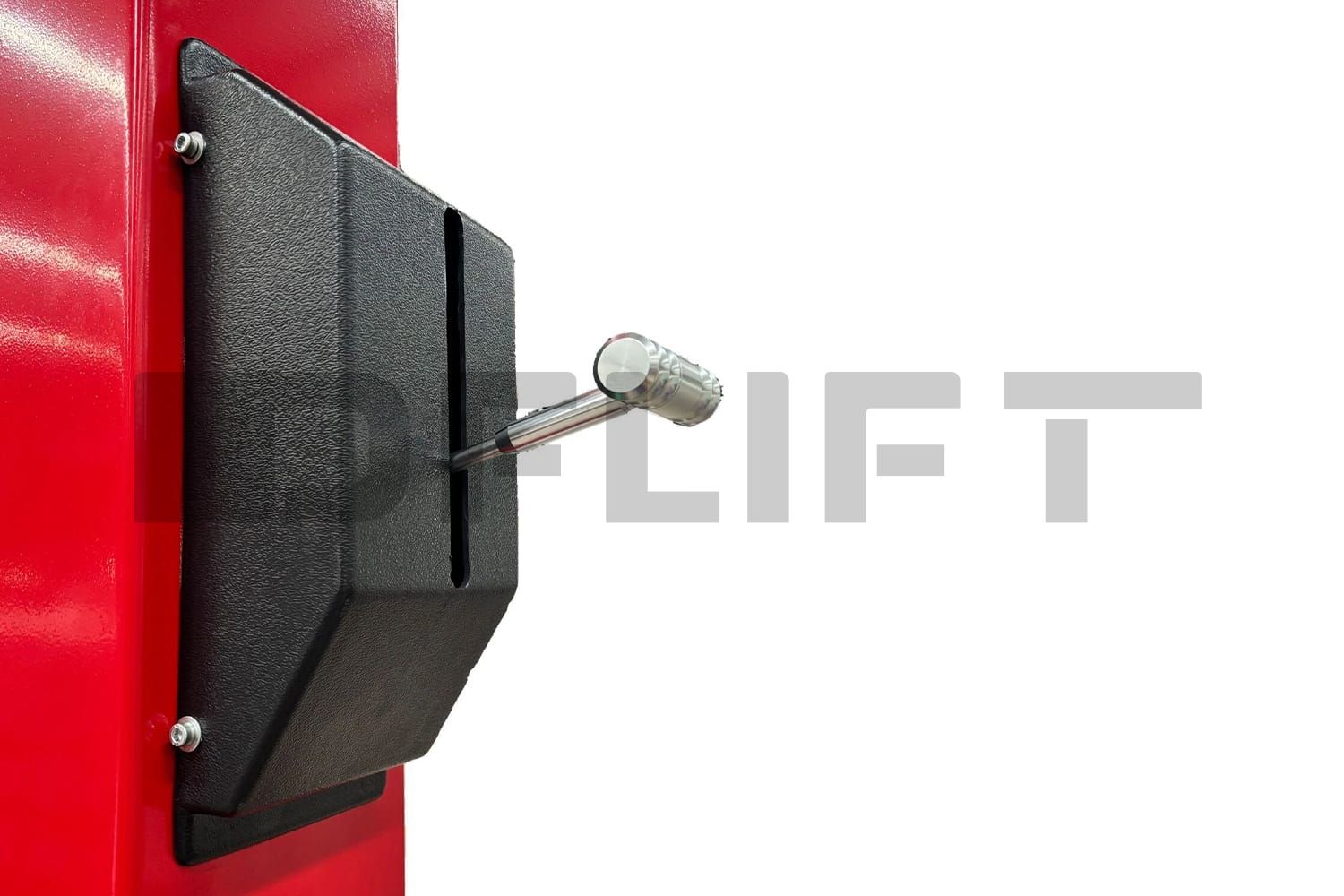

Single-side manual release

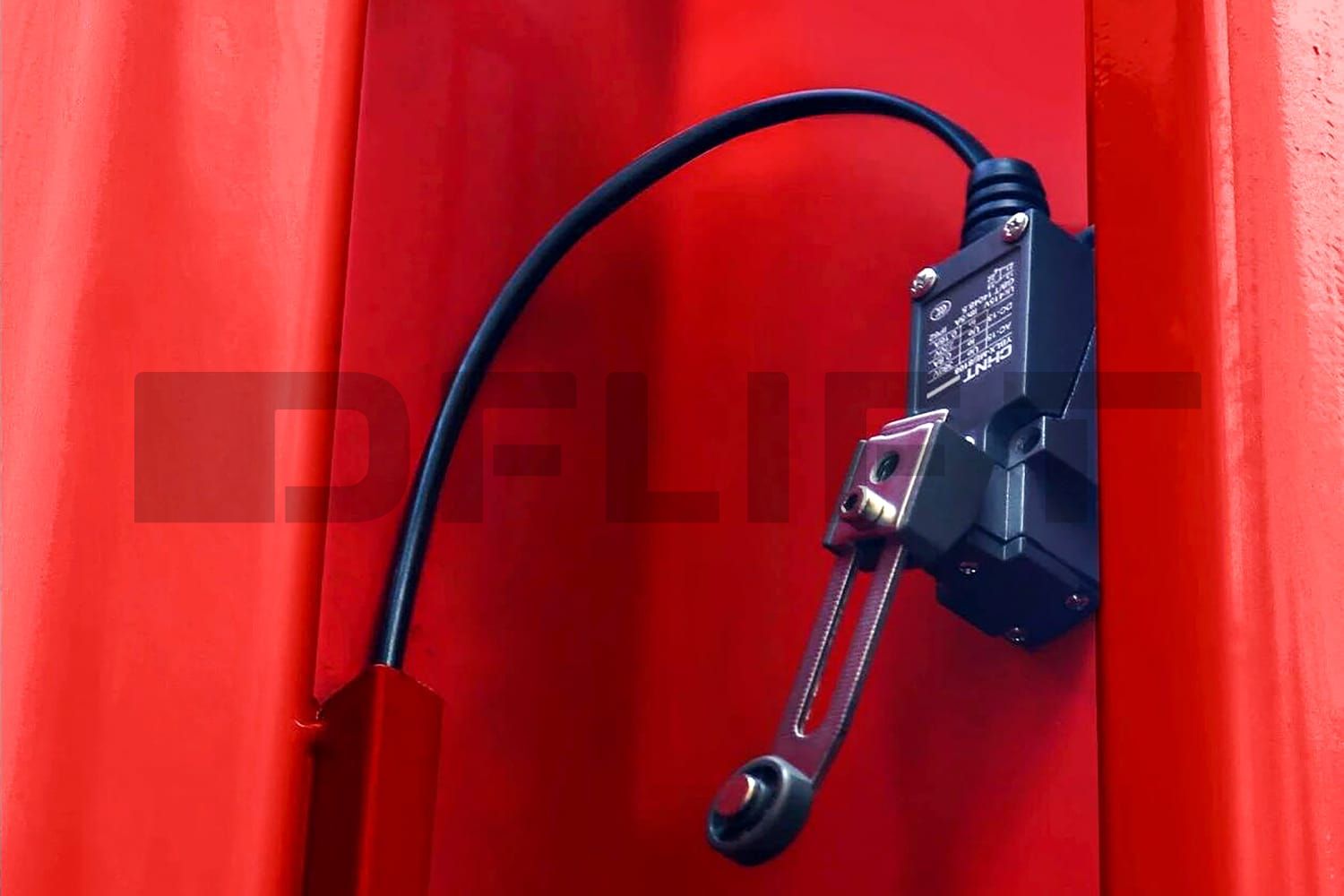

Upper limit switch
