PRODUCT DESCRIPTION

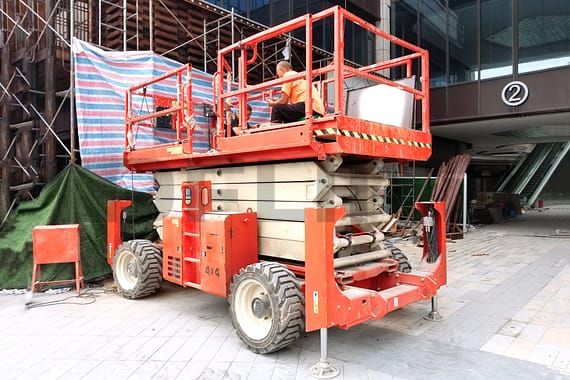

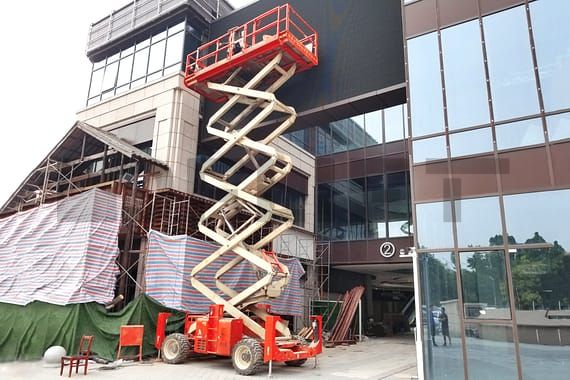

DFlift rough terrain scissor lifts deliver higher capacities and larger platforms for the most tough construction job sites. Four-wheel drive, oscillating axels and hydraulic outriggers provide superior stability on the most tough uneven surfaces.

Standard configuration

  • Proportional Controls
  • Self-lock Gate On Platform
  • 4WD
  • 4WS
  • Self-leveling hydraulic outriggers
  • Automatic brake system
  • Cylinder holding valve
  • Onboard diagnostic system
  • Tilt sensor with alarm
  • All motion alarm
  • Emergency lowering system
  • Emergency stop button
  • Horn
  • Hour meter
  • Safety brackets
  • Flashing beacon
  • Folding guardrails
  • Automatic pothole protection
  • Automatic single roll out deck

Advantages

  • Larger working platform with dual extension decks offers great productivity.
  • Deutz / Kubota powerful diesel engine, oscillating axels and four-wheel drive provide better performance on most rough terrain job sites.
  • Standard features with one button auto leveling outriggers, overload system, motion alarm, help the operator to complete the job in a muchsaferway.
  • Pull-out engine tray for easy access

Parameter

size

Parameters Table

MODELS DFR1018E/D DFR1218E/D DFR1023D DFR1323D DFR1623D
Working Height Max. 11.7m 13.9m 12m 15m 17.9m
A Platform Height-Raised 9.7m 11.9m 10m 13m 15.9m
B Platform Height-Stowed 1.41m 1.56m 1.58m 1.83m 2.08m
C Platform Length 2.79m 2.79m 3.98m 3.98m 3.98m
D Platform Width 1.6m 1.6m 1.83 m 1.83m 1.83m
E Overall Length 3.12m 3.12m 4.9m 4.9m 4.9m
F Overall Width 1.79m 1.79m 2.3m 2.3m 2.3 m
G Overall Height-Rails Up 2.55m 2.7m 2.74m 2.96m 3.18m
Overall Height-Rails Down 1.89m 2.04m 2.06m 2.28m 2.5m
Extension Deck 1.52m 1.52m 1.45/1.14m 1.45/1.14m 1.45/1.14m
H Wheelbase 2.29m 2.29m 2.85m 2.85m 2.85m
Ground Clearance-Center 0.23m 0.23m 0.23m 0.23m 0.23m
PRODUCTIVITY
Platform Occupants Max.   (in/out) 4/2 3/2 7/7 7/7 4/4
Platform Capacity 454kg 365kg 1100kg 910kg 680kg
Platform Capacity-Extension 140kg 140kg 230kg 230kg 230kg
Travel Speed(Stowed/Raised) 6/0.5 km/h 6.1/1.1 km/h
Drive Height Full Height 10m 8,5m 8.5 m
Gra deability-Stowed 35% 40%
Turning Radius-Outside 4.75m 4.75m 5.33m 5.33m 5.33m
Raise/Lower Speed 39/46s 61/55S 45/45s 55/55S 55/55S
Brakes Rear-wheel Brake Four-wheel Brake
Drive Mode Electric 4X2 Diesel 4X4 4X4
Tires Type Foam-filled Non-marking Solid
Tires Size 663x283mm 663X283mm 835x290mm 835X290mm 835X290mm
PROWER
Power Source Torjan 48V DC 315Ah
     Kubota D110518.5kw/24,8hp
Deutz D2.9L436.4kw/48.8hp
Fuel Tank Capacity – / 53L 110L 110L 110L
HYDRAULIC SYSTEM
Hydraulic Oil Capacity 70L 70L 140L 140L 140L
WEIGHT
Weight(Outriggers/Without   Outriggers) 3950kg / 4410kg 5100kg/ 5560kg 6880kg/6980kg 7360kg/7460kg 8100kg/8200kg

PARTS DETAILS

Automatic outriggers

Automatic outriggers

Battery

Battery

Controller

Controller

Diesel engine

Diesel engine

Pump station

Pump station

Spirit level

Spirit level
