PRODUCT DESCRIPTION

Drivable is very convenient to use because the operator can drive it to anywhere to work. Max platform height is from 8 to 14m. We can provide both battery and diesel power for drivable boom lift. It can move upward and downward automatically, and can be operated both on the platform and on ground.

Advantages

  • Two sources of power: storage battery and Diesel engine. And the storage battery works without noise.
  • With four full-automatic hydraulic legs, it can be more stable.
  • Boom rotation 360°, so it can work across the barriers.

FEATURES

  1. Multiple job site application, indoors and outdoors
  2. High and low operation panel
  3. Hydraulically outriggers and outrigger interlocks
  4. 360°continuous turntable rotation
  5. Protective covers for oil-tank, emergency controls etc.

Parameters Table

Model Capacity Platform size(mm) Platform height(m) Working height(m) Overall
Dimensions(mm)
Working radius(m) Working speed (km/h)
DFQB8 180 850*650*1000 8 10 4000*1700*2700 2.5 15-30
DFQB10 180 850*650*1000 10.5 12.5 4000*1700*2700 2.5 15-30
DFQB12 180 850*650*1000 12 14 4800*2100*3050 3.8 15-30
DFQB14 180 850*650*1000 14 16 5100*2200*3300 4.2 15-30

PARTS DETAILS

Outrigger

Outrigger

202201dast

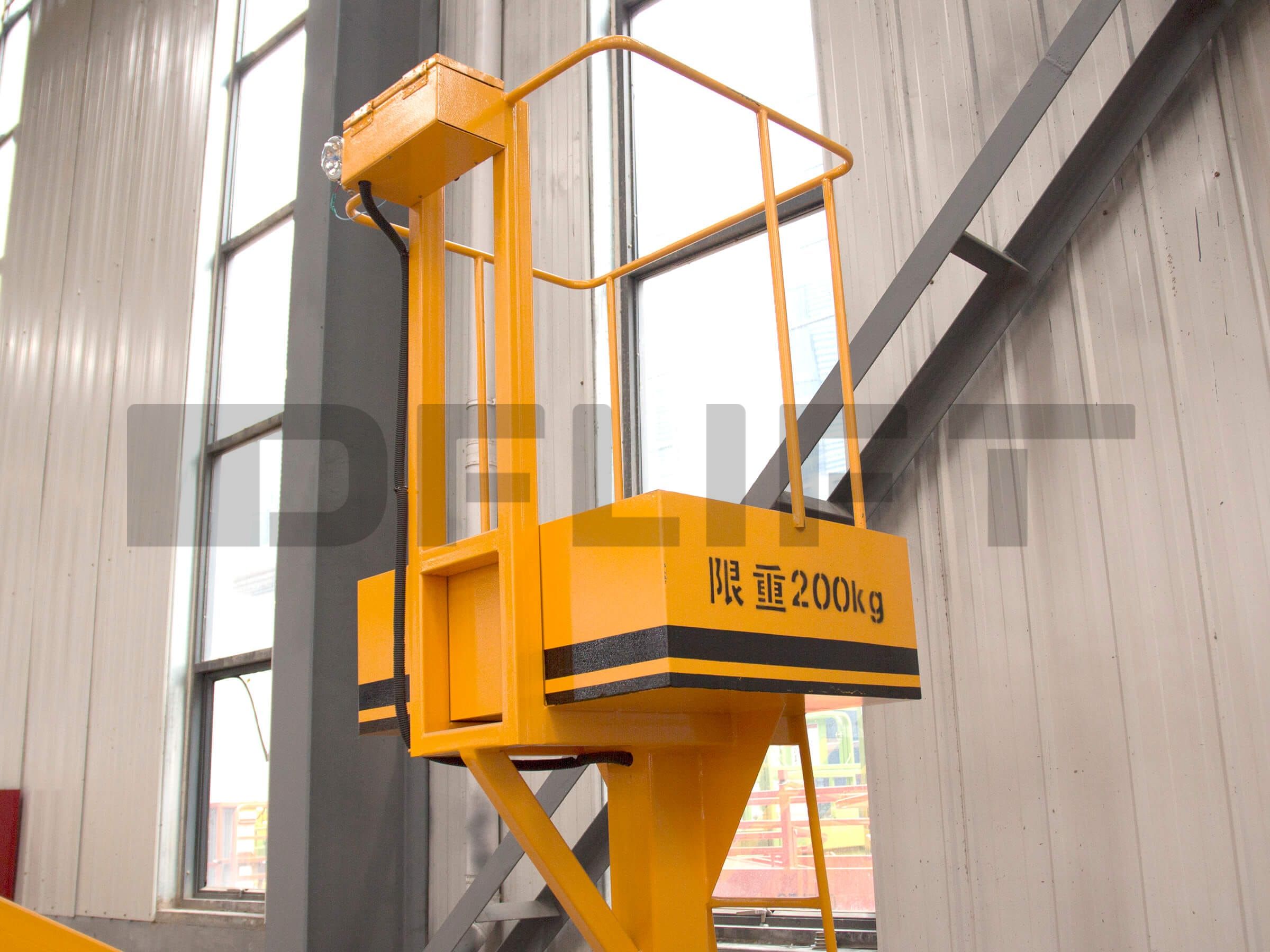

Platform control

The cab

The cab

202201crfz

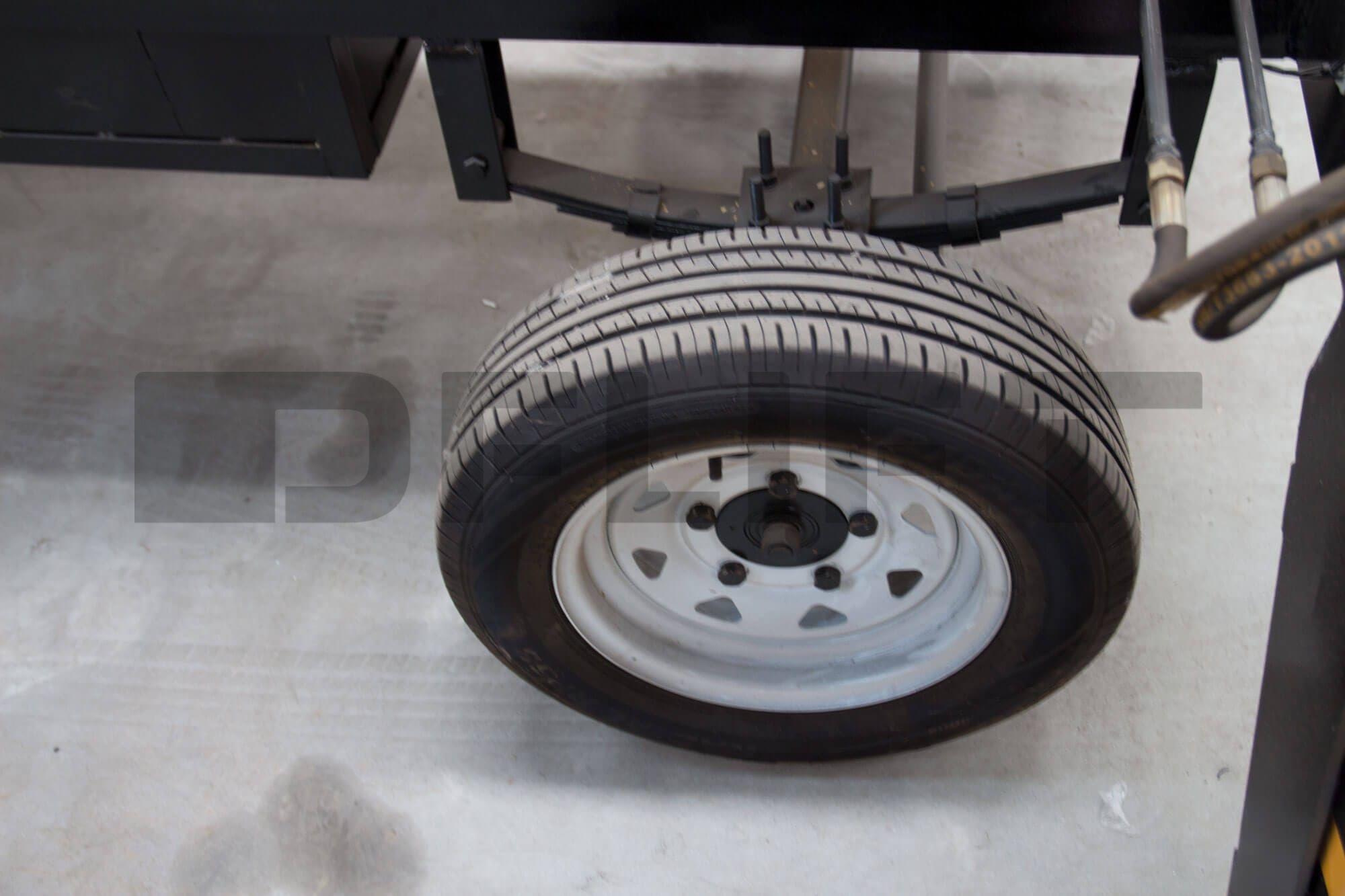

Wheel

202201gfbs

Diesel engine

202201frpe

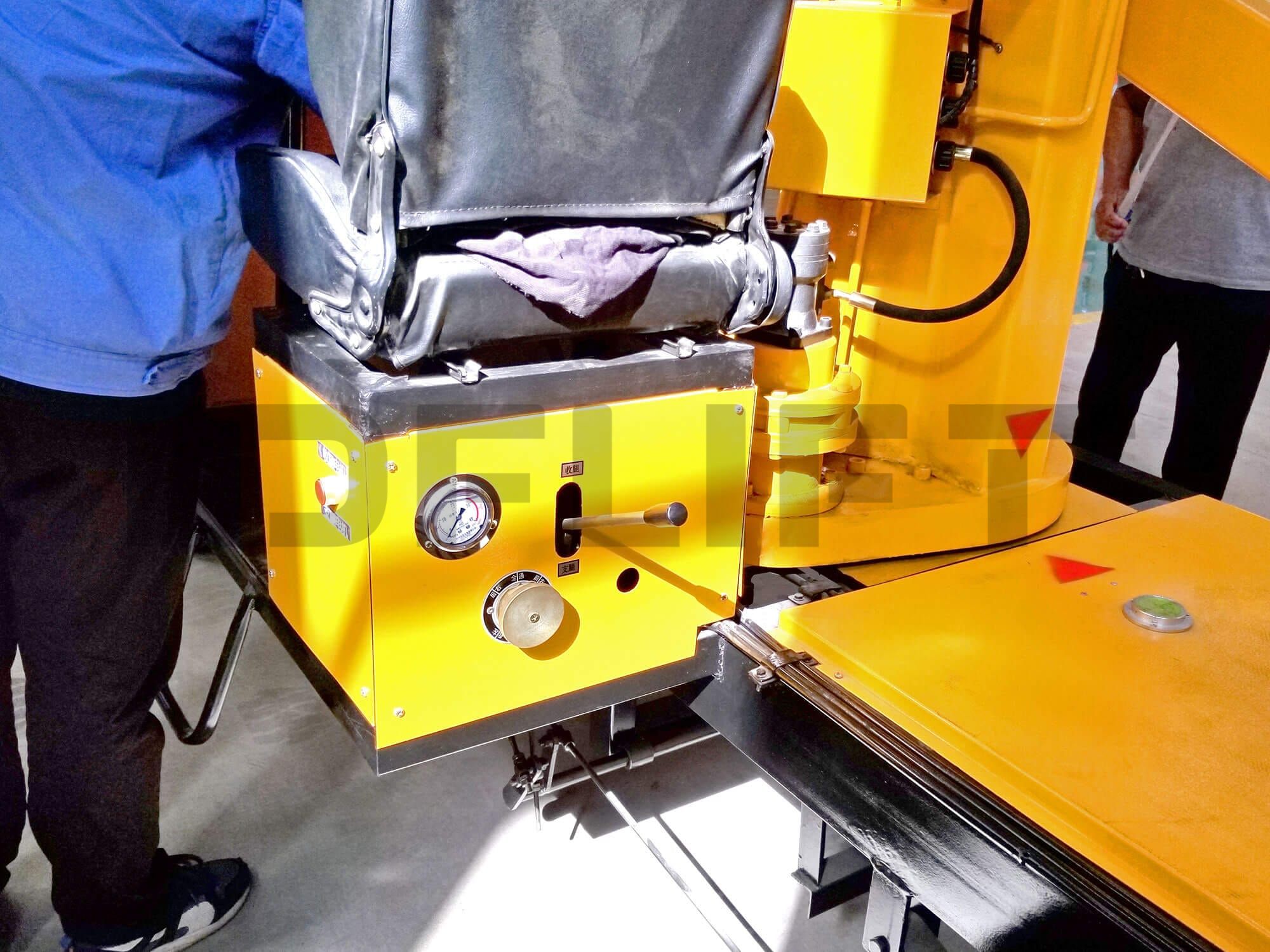

Hydraulic support leg control

Lift control

Ground control

202201kruu

Rotating mechanism

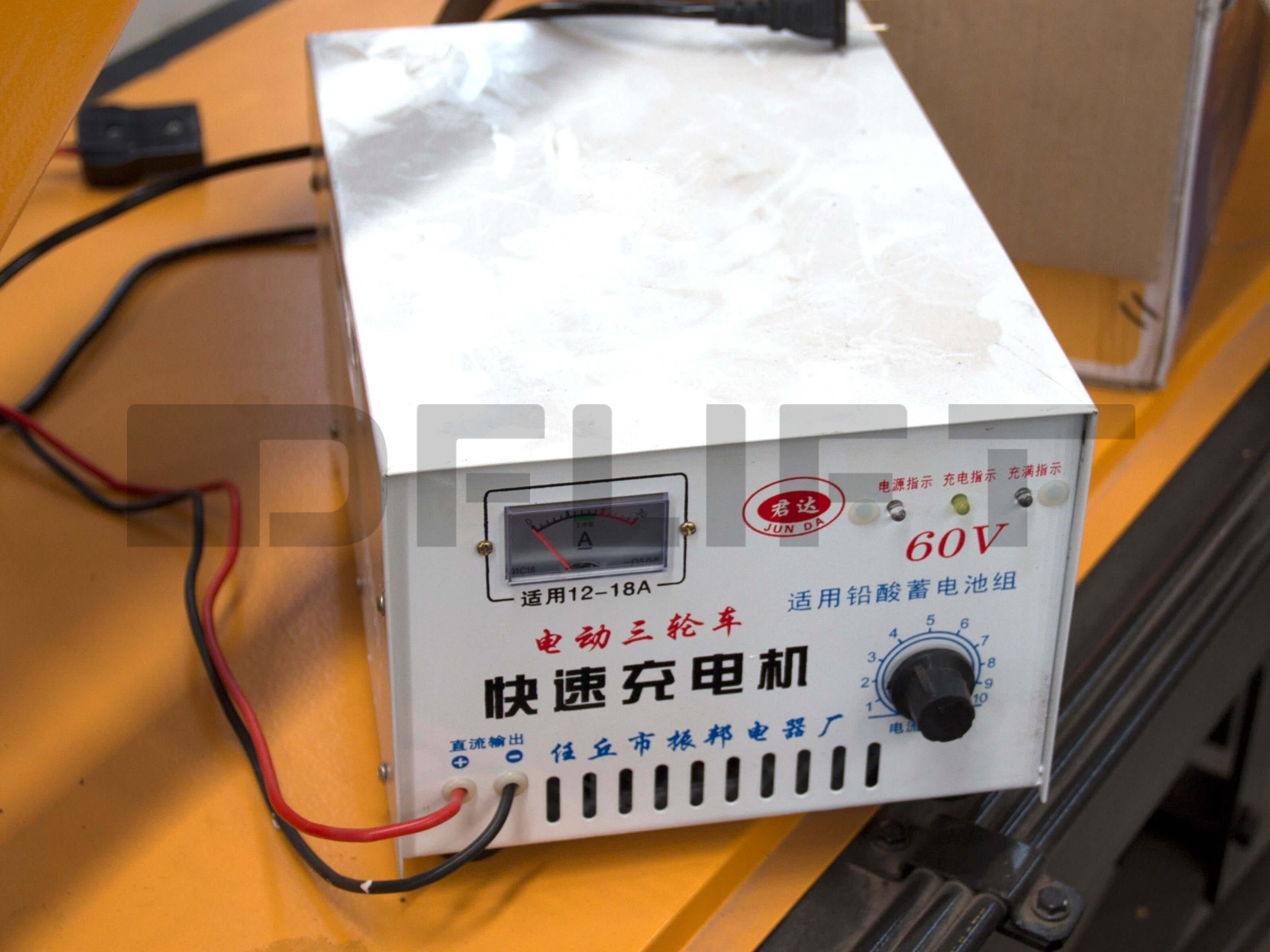

Optional battery drive

Optional battery drive
