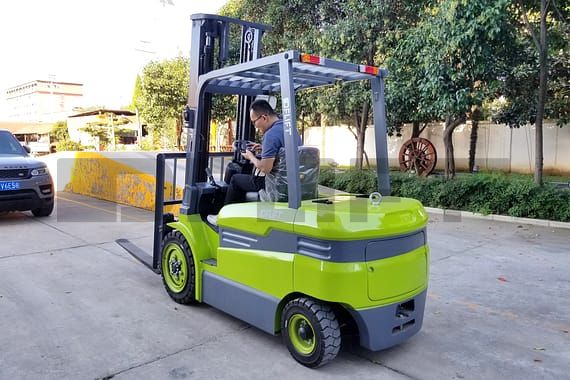

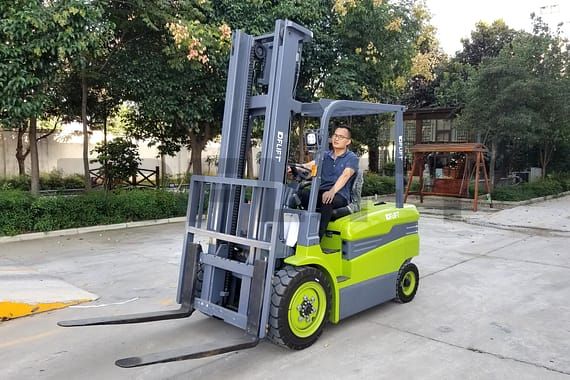

Introduction
The electric forklift is material handling equipment which use the batteries as power source to drive the driving motor and hydraulic system motor to realize moving and loading operation. You also could understand it use DC power supply(battery) to carry and load goods.Compared with diesel type forklift, electric forklift has the advantage of no pollution, easy operation, no noise, energy saving and high efficiency due to its simple operation and control. With the development of economy and the improvement of environmental protection and energy saving requirements, electric forklifts are developing rapidly. Market sales are increasing year by year. Especially in the port, storage, food, and textile and other industries, electric forklifts are gradually replacing diesel forklifts.
Features
- Intelligent control: Three modes of operation, Fault code prompt
- Seat and steering wheel height adjustable, Solid tire, Hydraulic cylinder steering
- High-voltage permanent magnet brushless motor, more energy-saving and maintenance-free
- Smart charger, electrical waterproof plug
Technical parameters
| characteristics | 1.1 | Model | CPD-15K | CPD-20K | CPD-25 | CPD-30 | CPD-35 | ||
| 1.2 | Power form | Lead-acid battery | Lead-acid battery | Lead-acid battery | Lead-acid battery | Lead-acid battery | |||
| 1.3 | Operation type | Ride-on | Ride-on | Ride-on | Ride-on | Ride-on | |||
| 1.4 | Load | kg | 1500 | 2000 | 2500 | 3000 | 3500 | ||
| 1.5 | Load center distance | c | mm | 500 | 500 | 500 | 500 | 500 | |
| 1.6 | Front overhang | x | mm | 410 | 410 | 410 | 488 | 488 | |
| 1.7 | Wheelbase | y | mm | 1400 | 1400 | 1400 | 1700 | 1700 | |
| Dimensions | 2.1 | Frame angle forward/backward | αβ | ° | 6/8 | 6/8 | 6/8 | 6/8 | 6/8 |
| 2.2 | Minimum ground clearance | m2 | mm | 114 | 114 | 114 | 114 | 114 | |
| 2.3 | Standard maximum lifting height | h3 | mm | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 2.4 | Vehicle size L/W | L2*b2 | mm | 2130*1150 | 2130*1150 | 2300*1100 | 2580*1225 | 2580*1225 | |
| 2.5 | Mast lifting/Closed height | h4/h1 | mm | 3935/1995 | 3935/1995 | 2100 | 2100 | 2100 | |
| 2.6 | Fork size L/WT | l*e*s | mm | 1070×100×35 | 1070×100×35 | 1070×125×45 | 1070×125×45 | 1070×125×45 | |
| 2.7 | Minimum turning radius | Wa | mm | 1930 | 1930 | 2030 | 2180 | 2180 | |
| 2.8 | Free lift height | h2 | mm | 125 | 125 | 135 | 135 | 135 | |
| 2.9 | Safety frame height | h6 | mm | 2100 | 2100 | 2100 | 2100 | 2100 | |
| Weight | 3.1 | Weight (including battery) | kg | 2800 | 3100 | 4050 | 4950 | 5250 | |
| 3.2 | Axle load (full load) front axle/rear axle | kg | 3855/445 | 4575/525 | 5895/655 | 7552.5/397.5 | 7875/875 | ||
| 3.3 | Axle load (no load) front axle/rear axle | kg | 1100/1700 | 1300/1800 | 1620/2430 | 1980/2970 | 2100/3150 | ||
| Tyre | 4.1 | Tyre type (front/rear) | Solid rubber/Inflated | Solid rubber/Inflated | Solid rubber | Solid rubber | Solid rubber | ||
| 4.2 | Front wheel size | 6.50-10 | 6.50-10 | 28×9-15-14PR | 28×9-15-14PR | 28×9-15-14PR | |||
| 4.3 | Rear wheel size (solid) | 16X6-8 | 16X6-8 | 18×7-8 | 18×7-8 | 18×7-8 | |||
| 4.4 | Front wheel track | b10 | mm | 890 | 890 | 980 | 980 | 980 | |
| 4.5 | Rear wheel track | b11 | mm | 920 | 920 | 1000 | 1000 | 1000 | |
| Power unit and control | 5.1 | Rated power of drive motor | kw | 5 | 5 | 10 | 12 | 12 | |
| 5.2 | Rated power of lifting motor | kw | 5 | 5 | 10 | 12 | 12 | ||
| 5.3 | Battery size | mm | 970/660/430 | 970/660/430 | 970/660/430 | 1028/700/970 | 1028/700/970 | ||
| 5.4 | Battery voltage | V/ah | 60/230 | 60/230 | 48/600 | 80/500 | 80/500 | ||
| 5.5 | Controller | AC | AC | AC | AC | AC | |||
| 5.6 | Work pressure | mpa | 15 | 15 | 15 | 15 | 15 | ||
| Performance parameters | 6.1 | Driving speed (laden/unladen) | km/h | 10/11 | 10/11 | 13.5/15 | 14.5/15 | 14.5/15 | |
| 6.2 | Lifting speed (full load/no load) | mm/s | 230/350 | 230/350 | 230/350 | 250/360 | 250/360 | ||
| 6.3 | Lowering speed (full load/no load) | mm/s | 550/300 | 550/300 | 550/300 | 550/300 | 550/300 | ||
| 6.4 | Maximum grade ability | ° | 10 | 10 | 15 | 15 | 15 | ||
| 6.5 | Service brake type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |||
| 6.6 | Parking brake type | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | |||
| Others | 7.1 | Drive control type | Electric | Electric | Electric | Electric | Electric | ||
| 7.2 | Steering type | Hydraulic steering | Hydraulic steering | Hydraulic steering | Hydraulic steering | Hydraulic steering | |||
| 7.3 | Noise level | 68 | 68 | 68 | 68 | 68 | |||
| 7.4 | Waterproof level | IP54 | IP54 | IP54 | IP54 | IP54 |
PARTS SHOW
Battery - Using domestic well-known batteries, energy consumption is lower, working time is longer, and stability is stronger. Reliable quality, safe and secure.
Controller - Equipped with domestic first-line brand controllers, greatly improving the reliability and service life of the forklift
Tire - The whole vehicle is equipped with solid tires as standard, which has stronger carrying capacity and improved stability and comfort.
Overhead guard - High-strength roof guard, welded and formed at one time, fully in line with national standards
Multi function dashboard - Integrated one-key start and stop, power display, fault display and other functions.
Frame - The use of high-strength special steel for the frame, from material selection to welding forming, fully meets the requirements of special equipment
Seat - The ergonomic comfortable seat can effectively reduce the fatigue of the driver and improve work efficiency
