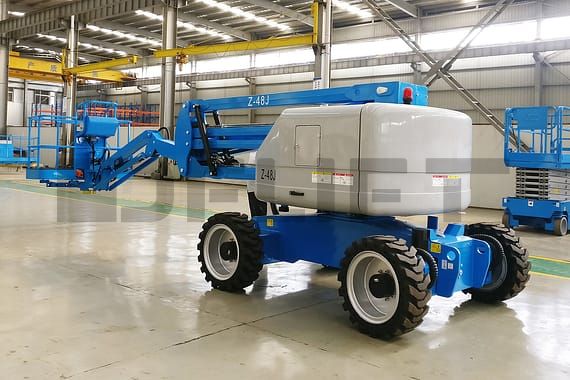

BRIEF INTRODUCTION

    Articulating boom lifts is lifting equipment for working at height. It has a telescopic arm that can be overhung, spanned obstacles or can be multi-pointed in one lift. 360-degree rotation, large platform load capacity, can equip for two or more people to work at the same time. It can work at heights across obstacles. The lifting platform has good mobility, and the transfer site is convenient. When the platform is lifted to any position, it can be operated while walking, with compact structure and flexible steering. The width of the site ensures that the device enters narrow passages and crowded work areas. The backup power unit can be operated to reset the working platform and is easily transported to any place. It has Easy-to-recognize operator panel, multiple mechanical, electrical and hydraulic protection, advanced integrated hydraulic and electrical integrated system.

    USAGE

    Brake boom aerial vehicles are widely used in the installation, maintenance and climbing operations of municipal, electric power, street lighting, advertising, communications, photography, gardens, transportation, terminals, airport ports, large industrial and mining enterprises and so on.

    FEATURES

    • Diesel or battery powered. No external power supply is required.
    • Solid tires and equipped with a 4 drive system, with a certain off-road capability.
    • It can walk, turn, and move flexibly in the ascending state.
    • Microcomputer system, support equipment self-test.

    SPECIFICATION

    ModelLifting heightOverall dimensionsPlatform sizeWorking radiusWorking  speedPowerCapacityTotal weightPower source
    QBPT-10105.4*1.2*1.71.6*0.74.2848V/240A/4kw227kg5900battery
    QBPT-12126.6*1.3*1.81.6*0.75.86300
    QBPT-14147.5*1.4*1.951.5*0.76.66600
    QBPT-16168.2*1.4*21.5*0.77.37200
    QBPT-18189.5*1.6*21.5*0.79.67600
    QBPT-20209.8*1.6*2.11.5*0.713.28500
    QBPT-222211 *1.8*2.21.8*0.87.5153/1.1/21kw24511200Water cooled diesel engine
    QBPT-242412.5*2*2.41.8*0.88.33/1.5/26kw12500
    QBPT-26268.6*2.4*38.63/1.5/26kw13500
    QBPT-282810*3*394/1.7/27.5kw14500
    QBPT-303010.5*3.4*3.59.54/2.2/38kw15600

    Parts Details

    Battery

    Battery

    Control panel

    Control panel

    Emergency stop

    Emergency stop

    Hydraulic pump

    Hydraulic pump

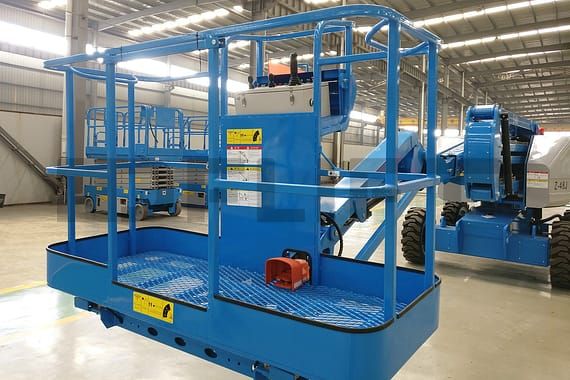

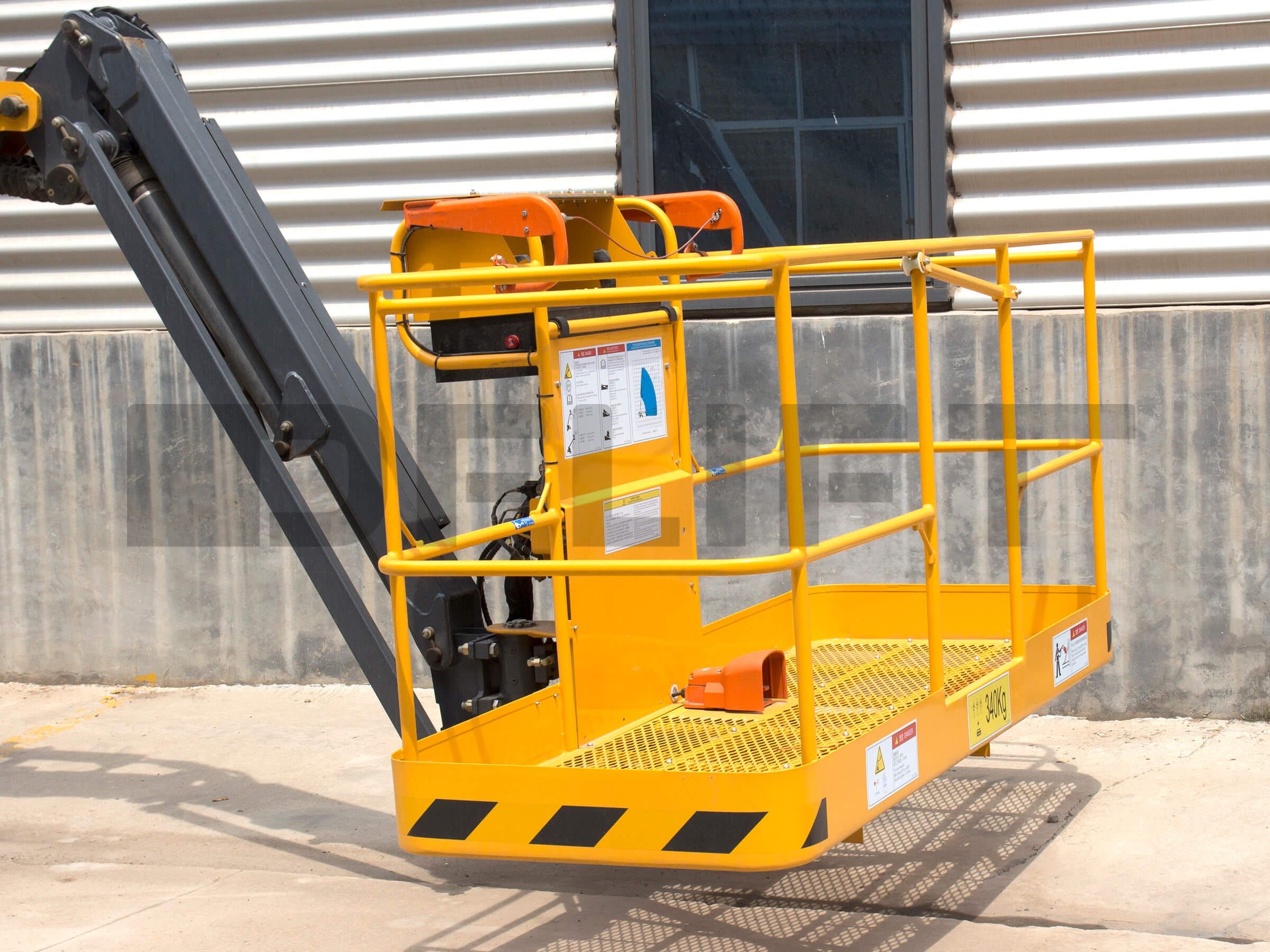

    Platform

    Platform

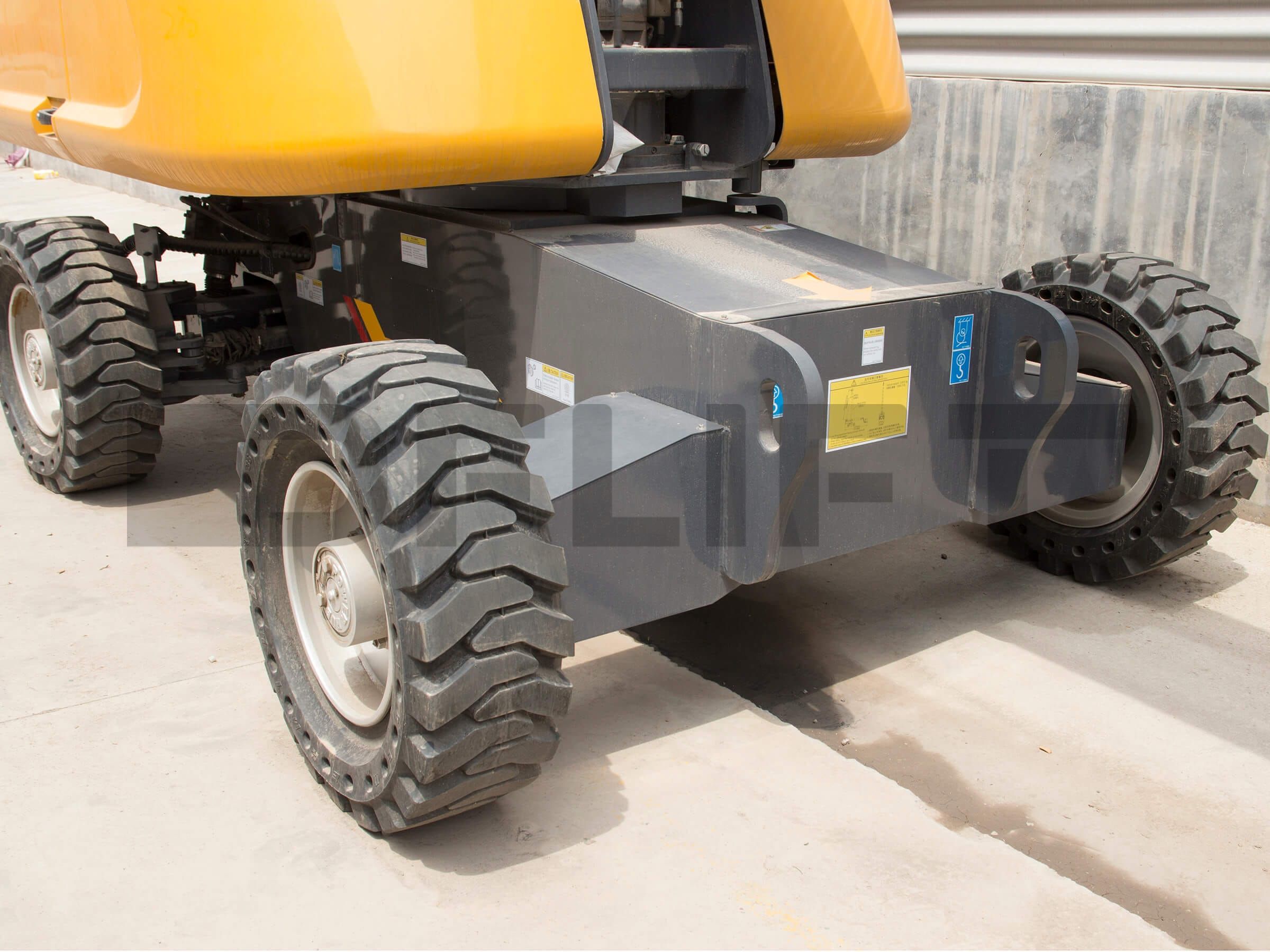

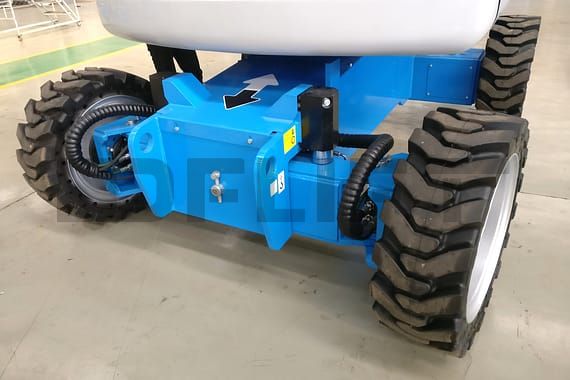

    Wheel

    Wheel
