Introduction

The electric forklift is material handling equipment which use the batteries as power source to drive the driving motor and hydraulic system motor to realize moving and loading operation. You also could understand it use DC power supply(battery) to carry and load goods.Compared with diesel type forklift, electric forklift has the advantage of no pollution, easy operation, no noise, energy saving and high efficiency due to its simple operation and control. With the development of economy and the improvement of environmental protection and energy saving requirements, electric forklifts are developing rapidly. Market sales are increasing year by year. Especially in the port, storage, food, and textile and other industries, electric forklifts are gradually replacing diesel forklifts.

Feature

  1. Intelligent control: Three modes of operation, Fault code prompt
  2. Seat and steering wheel height adjustable, Solid tire, Hydraulic cylinder steering
  3. High-voltage permanent magnet brushless motor, more energy-saving and maintenance-free
  4. Smart charger, electrical waterproof plug

Technical parameter





characteristic 1.3 Model     CPD-15K CPD-20K CPD-25 CPD-30 CPD-35
1.4 Power form     Lead-acid battery Lead-acid battery Lead-acid battery Lead-acid battery Lead-acid battery
1.5 Operation type     Ride-on Ride-on Ride-on Ride-on Ride-on
1.6 Load   kg 1500 2000 2500 3000 3500
1.7 Load center distance c mm 500 500 500 500 500
1.8 Front overhang x mm 410 410 410 488 488
1.9 Wheelbase y mm 1400 1400 1400 1700 1700
Dimensions 2.1 Frame angle   forward/backward αβ ° 6/8 6/8 6/8 6/8 6/8
2.2 Minimum ground   clearance m2 mm 114 114 114 114 114
2.3 Standard maximum   lifting height h3 mm 3000 3000 3000 3000 3000
2.4 Vehicle size L/W L2*b2 mm 2130*1150 2130*1150 2300*1100 2580*1225 2580*1225
2.5 Mast lifting/Closed height h4/h1 mm 3935/1995 3935/1995 2100 2100 2100
2.6 Fork size L/WT l*e*s mm 1070×100×35 1070×100×35 1070×125×45 1070×125×45 1070×125×45
2.7 Minimum turning   radius Wa mm 1930 1930 2030 2180 2180
2.8 Free lift height h2 mm 125 125 135 135 135
2.9 Safety frame height h6 mm 2100 2100 2100 2100 2100
Weight 3.1 Weight (including   battery)   kg 2800 3100 4050 4950 5250
3.3 Axle load (full load)   front axle/rear axle   kg 3855/445 4575/525 5895/655 7552.5/397.5 7875/875
3.4 Axle load (no load)   front axle/rear axle   kg 1100/1700 1300/1800 1620/2430 1980/2970 2100/3150
Tyre 4.1 Tyre type   (front/rear)     Solid rubber/Inflated Solid rubber/Inflated Solid rubber Solid rubber Solid rubber
4.2 Front wheel size     6.50-10 6.50-10 28×9-15-14PR 28×9-15-14PR 28×9-15-14PR
4.3 Rear wheel size   (solid)     16X6-8 16X6-8 18×7-8 18×7-8 18×7-8
4.4 Front wheel track b10 mm 890 890 980 980 980
4.5 Rear wheel track b11 mm 920 920 1000 1000 1000
Power unit and control 5.1 Rated power of drive   motor   kw 5 5 10 12 12
5.2 Rated power of   lifting motor   kw 5 5 10 12 12
5.3 Battery   size   mm 970/660/430 970/660/430 970/660/430 1028/700/970 1028/700/970
5.4 Battery   voltage   V/ah 60/230 60/230 48/600 80/500 80/500
5.5 Controller     AC AC AC AC AC
5.6 Work   pressure   mpa 15 15 15 15 15
Performance parameters 6.1 Driving   speed (laden/unladen)   km/h 10/11 10/11 13.5/15 14.5/15 14.5/15
6.2 Lifting   speed (full load/no load)   mm/s 230/350 230/350 230/350 250/360 250/360
6.3 Lowering   speed (full load/no load)   mm/s 550/300 550/300 550/300 550/300 550/300
6.4 Maximum   grade ability   ° 10 10 15 15 15
6.5 Service   brake type     Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
6.6 Parking   brake type     Mechanical Mechanical Mechanical Mechanical Mechanical
Otders 7.1 Drive control type     Electric Electric Electric Electric Electric
7.2 Steering type     Hydraulic steering Hydraulic steering Hydraulic steering Hydraulic steering Hydraulic steering
7.3 Noise level     68 68 68 68 68
7.4 Waterproof level     IP54 IP54 IP54 IP54 IP54

PARTS SHOW

202109ctqv

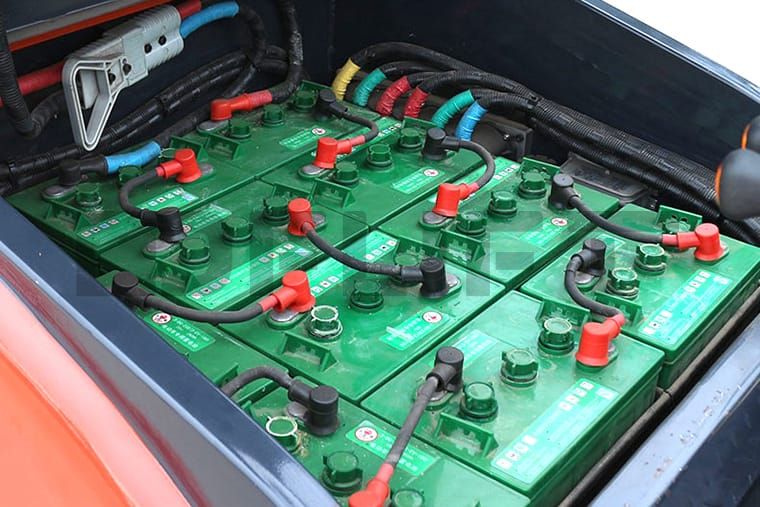

Battery - Using domestic well-known batteries, energy consumption is lower, working time is longer, and stability is stronger. Reliable quality, safe and secure.

202109trof

Controller - Equipped with domestic first-line brand controllers, greatly improving the reliability and service life of the forklift

202109ympp

Tire - The whole vehicle is equipped with solid tires as standard, which has stronger carrying capacity and improved stability and comfort.

202109qgzr

Overhead guard - High-strength roof guard, welded and formed at one time, fully in line with national standards

202109rbcl

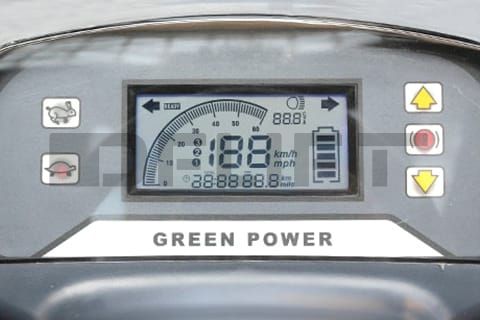

Multi function dashboard - Integrated one-key start and stop, power display, fault display and other functions.

202109yypd

Frame - The use of high-strength special steel for the frame, from material selection to welding forming, fully meets the requirements of special equipment

202109suuv

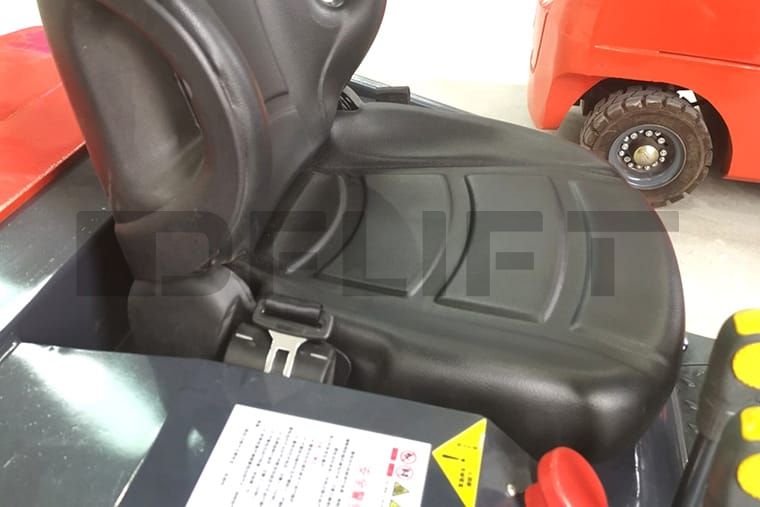

Seat - The ergonomic comfortable seat can effectively reduce the fatigue of the driver and improve work efficiency
