sIntroduction

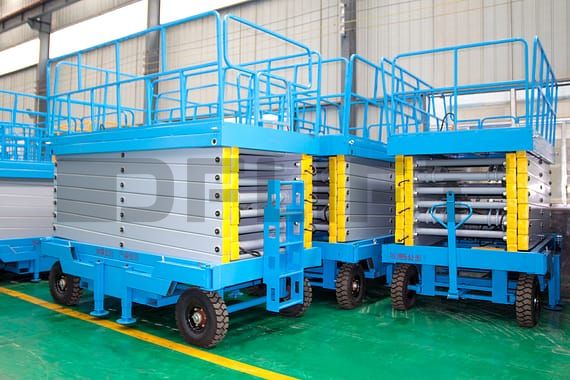

    Mobile hydraulic scissor lift platform is a widely used special equipment for high altitude operations. The lifting adopts hydraulic cylinder to push the scissor mechanical structure, which makes lifting platform rise with stability. Wide work platform and high bearing capacity make the high-altitude operation more extensive and suitable for multiple people to work at the same time. The lifting platform has good movability and convenient to transfer the site. Beautiful appearance, suitable for indoor and outdoor operation and storage.

    Application

    Especially applied in the factory, workshop, warehouse, grain depots, stations, hotels, airports, docks, gas stations, stadiums, electric power, elevated pipelines, etc. It is also used for maintaining of lifting equipment and outdoors electric facilities as well as steel structure workshop. The mobile lifting platform can help you handle high altitude works better.

    Advantage

    • Three- phase current, battery, the internal combustion engine can be chosen as a source of power. It is also equipped with hand pressure pump for power failure.
    • Electrical box fixed on the platform base, assembled with the emergency stop button. The platform will slow down when it press the button in an emergency occasion.
    • Walking-Assist wheel type: As for heavy lifting capacity and high working height scissor lift, it's not easy to move. The walking-assist wheel is added to make up for that defect. After the users press the botton on pedent, it can move around easily with the assistance of wheel.
    • The scissor made of strong manganese steel rectangular tube with high strength, stability and reliability advantages.
    • Equipped with emergency descending device when a power failure occurs.
    • Overload protection is provided to ensure the operation under a safe load bearing condition.
    • Lifting double limit, the platform is very stable when it rises to the highest point.
    • Polyurethane paint with good corrosion resistant. Different colors can be freely choose by customers.
    • Operate way:manual push or assisited walking system

    Parameters Table

    ModelLifting heightcapacityPlatform size
    (L*W) mm
    Weight
    SJY0.5-66m500kg2100*830880kg
    SJY0.5-76.8m500kg2100*830970kg
    SJY0.5-88m500kg2100*9301050kg
    SJY0.5-99m500kg2100*9301165kg
    SJY0.5-1010m500kg2100*12301360kg
    SJY0.5-1111m500kg2100*12301400kg
    SJY0.5-1212m500kg2550*15302260kg
    SJY0.5-1414m500kg2812*15302486kg
    SJY0.3-1616m300kg2812*16003063kg
    SJY0.3-1818m300kg3070*16003900kg
    SJY1.0-44m1000kg2100*12001250kg
    SJY1.0-66m1000kg2100*12001400kg
    SJY1.0-88m1000kg2100*12001585kg
    SJY1.0-1010m1000kg2100*12001700kg
    SJY1.0-1212m1000kg2550*15302560kg
    SJY1.0-1414m1000kg2812*16003230kg
    SJY1.5-66m1500kg2100*15301780kg
    SJY1.5-88m1500kg2100*15302070kg
    SJY1.5-1010m1500kg2100*15302250kg
    SJY1.5-1212m1500kg2550*15302900kg
    SJY1.5-1414m1500kg2816*16003400kg
    SJY2.0-66m2000kg2100*15301780kg
    SJY2.0-88m2000kg2100*15302070kg
    SJY2.0-1010m2000kg2100*15302250kg
    SJY2.0-1212m2000kg2550*16003200kg
    SJY2.0-1414m2000kg2816*16003900kg

    Parts Details

    Detachable guardrail:m high removable easy to transport and use

    Detachable Guardrail 1m high, removable, easy to transport and use.

    movable scissor lift

    Hydraulic tubing double steel mesh, rubber hosepipe.

    movable scissor lift

    Shaft Pin 45# steel Q+T treatment, automatic welding, firm structure and beautiful appearance

    towable scissor lift

    The pump station is equipped with emergency descending valve; Built-in overflow valve, overload protection function

    towable scissor lift

    Electrical Appliances Schneider or Chint Electric Control voltage 24V safe to use.

    towable scissor lift

    Standard with heavy pneumatic tires, optional with solid tires will be more durable

    Folding leg beautiful appearance simple operation

    Folding leg, beautiful appearance, simple operation

    Optional auxiliary walking simple operation only need to gently push and pull to control scissor lift walking do not need external force to push

    Optional auxiliary walking, simple operation only need to gently push and pull to control scissor lift walking, do not need external force to push

    Optional battery drive more flexible outdoor can adapt to a variety of working environment

    Optional battery drive, more flexible outdoor, can adapt to a variety of working environment
