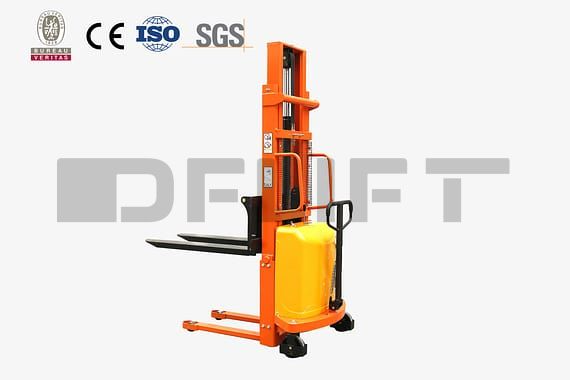

Semi-electric stacker is a new type of stacking machine that is easy to operate, environment friendly and efficient. The 12V battery lifting and lowering greatly improves work efficiency. And it is widely used in short-distance cargo handling such as factories, warehouses, and logistics centers. Semi-electric pallet stackers are more flexible, low noise in some narrow space, buildings and other places. performance.


  • The frame is made of high-strength hot-rolled steel
  • Exquisite structure design
  • Hand pull brake module
  • Lifting push rod, power display and easy operation
  • Reinforced double chain, explosion-proof oil pipe, safe and reliable


Item SEM10 SEM15 SEM20
Rated load  (Q)kg 1000 1500 2000
Load center  (C)mm 400 400 400
Lifting height  (H)mm 1600~3500 1600~3500 1600/2000
Total height  (H3)mm 90 90 90
Fork length  (L)mm 1000(1150mm Optional) 1000(1150mm Optional) 1000(1150mm Optional)
Fork sizemm 150×60 150×60 150×60
Outer width of fork(E) 320~850 Adjustable 320~850 Adjustable 320~850 Adjustable
Turning radius (R) 1350 1450 1450
Power  v/kw 12v/1.6kw 12v/1.6kw 12v/1.6kw
Battery  v/ah 12v/120Ah 12v/120Ah 12v/120Ah
Charger  v/a 12v15a 12v15a 12v15a
Total length (A) 1660 1660 1660
Total width (B) 865 930 865

PARTS show

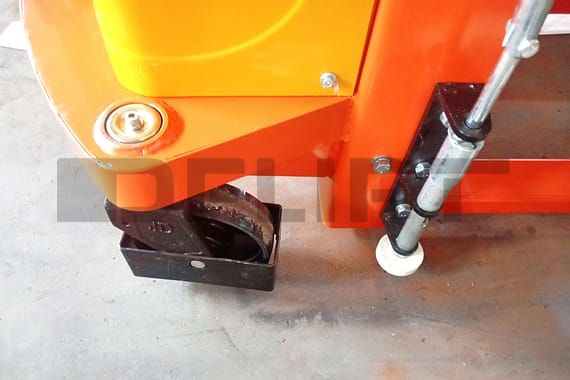

Brake system

Brake system

Modular design is easy to maintain

Modular design is easy to maintain

No gap roller

No gap roller

Safety net

Safety partition

Strengthened fork adjustable width

Strengthened fork, adjustable width

Wear resisting nylon wheel

Wear-resisting nylon wheel
