Introduction

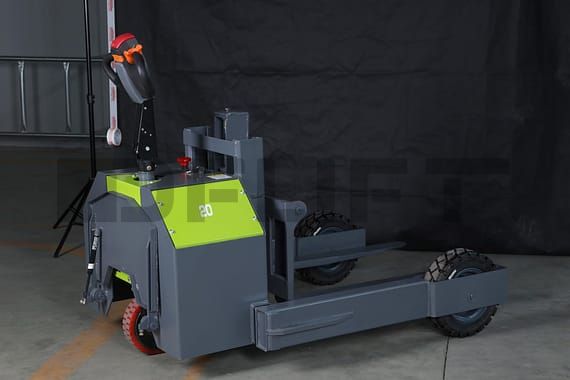

Outdoor off-road pallet truck adopts solid rubber wheel, ground clearance reaches 110mm, support leg width can be adjusted, can work on the outdoor unhardened ground and indoor, meet more occasions. Stand-on operation with high power lead-acid battery, easy and stable operation, reliable performance.

ADVANTAGEs

  • Solid rubber tires with high ground clearance
  • Adjustable support leg and fork
  • Large torque maintenance-free brushless DC motor
  • Non-slip pedal
  • High quality large capacity lead acid battery optional lithium battery

Technical parameters

Model EPTA-20
FEATURES Power Type Lead acid battery (Optional Lithium battery)
Operation Type Standing Driving
Rated Capacity kg 2000
Load Center mm 400
Lifting Height mm 200-400
DIMENSIONS Overall Dimension(L/W/H) mm 1600×1200
Fork Sizes mm 1070×140×60
Fork Width Min./Max. mm 900/1350
Min. Ground Clearance mm 110
Turning Radius mm 1600
Min.Right Angle Channel Width mm 2678
WEIGHT Self-weight(with battery) kg 650
Battery Weight kg 30
WHEEL Wheel Type Solid Rubber
Driving Wheel Sizes mm 250×70
Loading Wheel Sizes mm 370×100
DRIVING&CONTROL Driving Motor kw(60min) 1.5
Lifting Motor kw(60min) 2.2
Battery Dimension mm 271×174×213
Battery Voltage/Capacity V/ah 24/100
Working Pressure mpa 14
PERFORMANCE Travel speed(laden/unladen) km/h 3.5/4
Lifting speed(laden/unladen) mm/s 45/55
Max Climbing Ability % 8
Braking electromagnetic induction
OTHERS Driving Type Electric
Steering System Manual
Noise Level 63
Waterproof Grade IPX4
