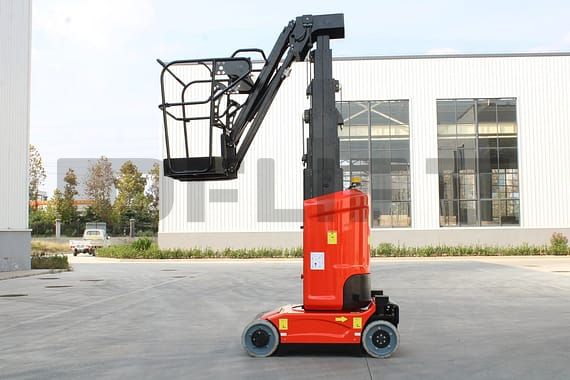

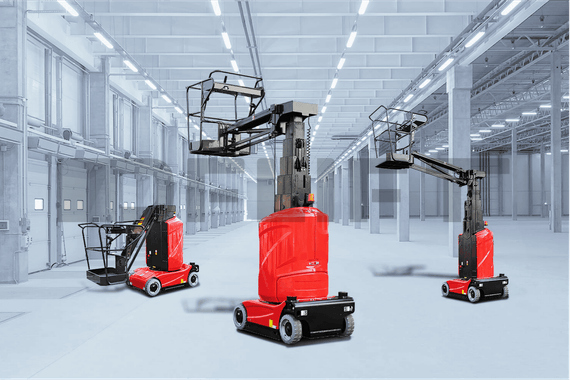

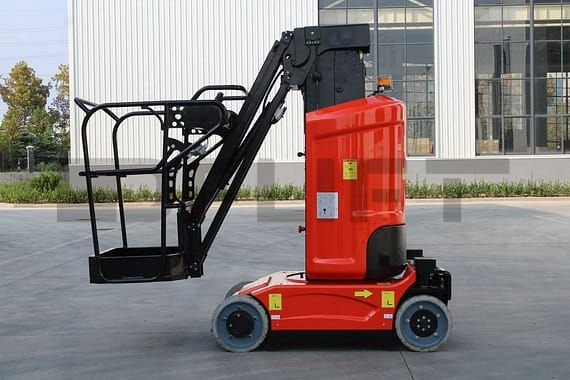

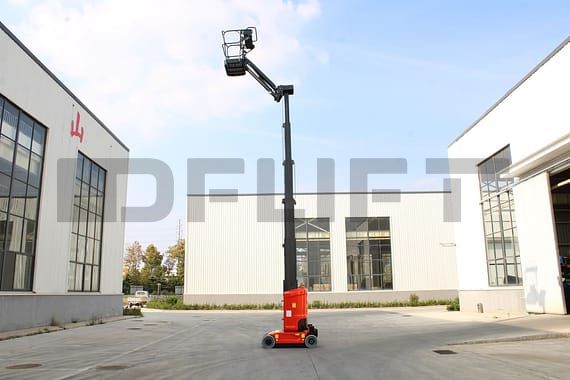

Kuinua Boom ya Mast Inayojiendesha Yenyewe

UTANGULIZI

Compact body + zero turning radius for agile movement in tight spaces; non-marking tires prevent floor damage. Battery-powered, low-noise, over 8h runtime. High-strength mast stably bears 215kg. Multiple safety features + dual-control operation, suitable for multi-industry aerial work, easy to maintain.

FAIDA

• Emergency Descent System: Equipped with a manual or battery-backed emergency descent valve. In the event of power loss or hydraulic system failure, operators can activate a pull-cord or push-button to control a smooth, controlled descent. This prevents personnel or cargo from being stranded at height, significantly enhancing emergency safety.
• Hydraulic Hose Burst Protection System: Hydraulic hoses are fitted with integrated burst valves. If a hose ruptures unexpectedly causing a sudden pressure drop, the valve automatically locks to prevent the platform from free-falling. This ensures the lifting mechanism and boom remain under control under all operating conditions.
• Automatic Braking System: The braking system automatically engages based on wheel speed and incline signals during movement or stationary periods. Whether on slopes, uneven terrain, or during forklift-style travel, it effectively prevents runaway movement, ensuring overall machine stability during relocation, loading, and aerial work.
• Fault Diagnostic System: The control panel integrates an intelligent diagnostic module that continuously monitors the hydraulic system, battery status, sensors, and boom condition. In case of anomalies, it displays specific fault codes or indicator lights, facilitating rapid troubleshooting and minimizing equipment downtime.

Configuration

• AC Drive Motor: Uses an AC motor-driven wheel system for smooth start-stop performance, low energy consumption, and brush-free maintenance, making it ideal for indoor and outdoor aerial work environments with frequent start-stop operations.
• Proportional Control: Joystick supports proportional speed regulation—the farther the throw, the faster the action. Enables precise inching control for lifting, traveling, and steering, enhancing operational comfort in confined spaces.
• Platform Self-Locking Gate: Equipped with a mechanical self-locking gate at the platform entrance. The machine is prohibited from lifting or driving if the gate is not fully secured, preventing accidental falls and ensuring high-altitude safety.
• Full-Height Drive Capability: Allows normal travel at any platform height (not limited to stowed position). Enables slight positional adjustments during aerial work without repeated lifting/lowering, significantly boosting efficiency.
• Non-Marking Tires: Features polyurethane or composite rubber non-marking tires that protect sensitive flooring such as epoxy, tile, and wood. Ideal for indoor warehouses, shopping malls, and clean workshops.
• Automatic Braking System: Brakes engage automatically when travel stops to prevent rolling on inclines or uneven ground. Brakes release automatically upon travel, simplifying operation and enhancing slope safety.
• Tilt Alarm: The system triggers audible and visual alarms when the chassis tilt angle exceeds the preset safety limit. Lifting functions are restricted to prevent overturning risks on uneven terrain.
• Motion Audible Alarm: An automatic buzzer sounds during lifting, traveling, and steering operations to alert surrounding personnel to maintain a safe distance.
• 345° Turret Rotation: The turret supports 345° of continuous rotation (near-full circle), covering most work orientations without frequent chassis repositioning, facilitating precise alignment in narrow areas.
• Horn: An electric horn is integrated into the control panel for signaling and warnings, suitable for noisy environments or obstructed sightlines.
• Hour Meter: A built-in hour meter records cumulative operating time, assisting in scheduled maintenance planning (e.g., hydraulic oil changes, battery checks, lubrication) to extend equipment lifespan.
• Charger Protection System: The charging circuit integrates over-current, over-voltage, over-temperature, and reverse polarity protection to prevent battery damage. Supports automatic shut-off when fully charged.
• Strobe Warning Light: High-brightness strobe lights mounted on top flash continuously during operation to enhance visibility in low-light or complex environments and alert nearby personnel.
• Automatic Pothole Protection: Retractable pothole protection plates deploy automatically beneath the chassis when the platform rises, filling gaps between wheels and ground to prevent falling into holes or crossing over edges.
• Charging Indicator Light: Indicator lights display real-time battery status during charging (e.g., red for charging, green for full, flashing for fault), allowing quick assessment of battery condition.
• Manual Brake Release: In case of power failure or malfunction, the manual brake release mechanism allows operators to disengage the brake for towing, relocation, or emergency movement to avoid immobilization.
• Safety Harness Lanyard Points: Reserved anchor points for safety harnesses are provided inside the platform. Operators can attach full-body harnesses, complying with high-altitude safety regulations to prevent falls.
• Fixed Anchor Points & Lifting Lugs: Dedicated anchor points and lifting lugs are reserved on the body for secure tie-down during transport, as well as crane or forklift-assisted loading/unloading and cross-site relocation.
• Emergency Stop Button: Red emergency stop buttons are equipped on both the control panel and remote control. Pressing immediately cuts all power output for emergency braking in critical situations.
• Swing-Open Protective Covers: Swing-open protective covers are installed over key components (e.g., controllers, batteries, hydraulic valve blocks). They can be opened tool-free for quick daily inspection and maintenance.

MAELEZO

Maelezo ya Sehemu

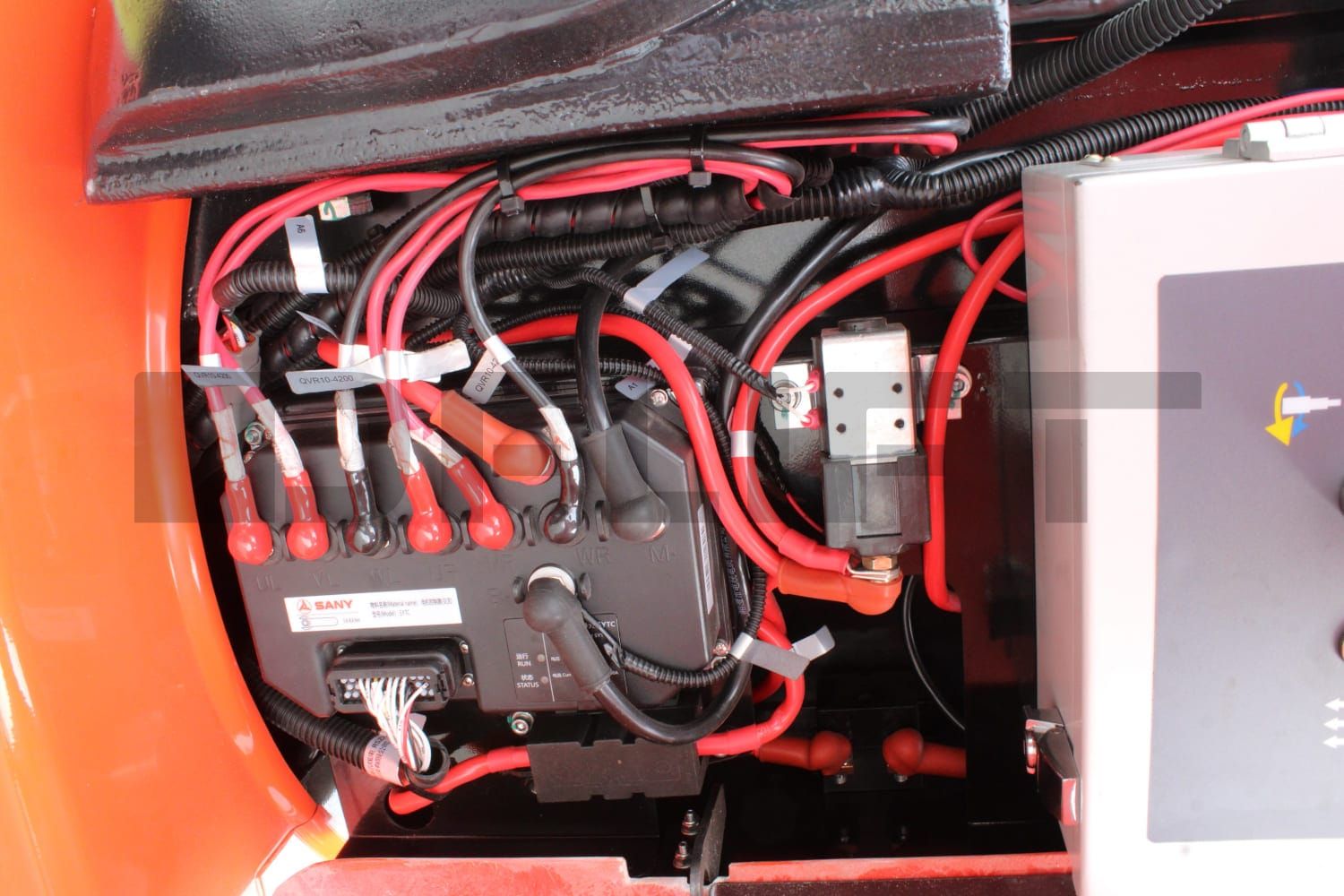

Central control system

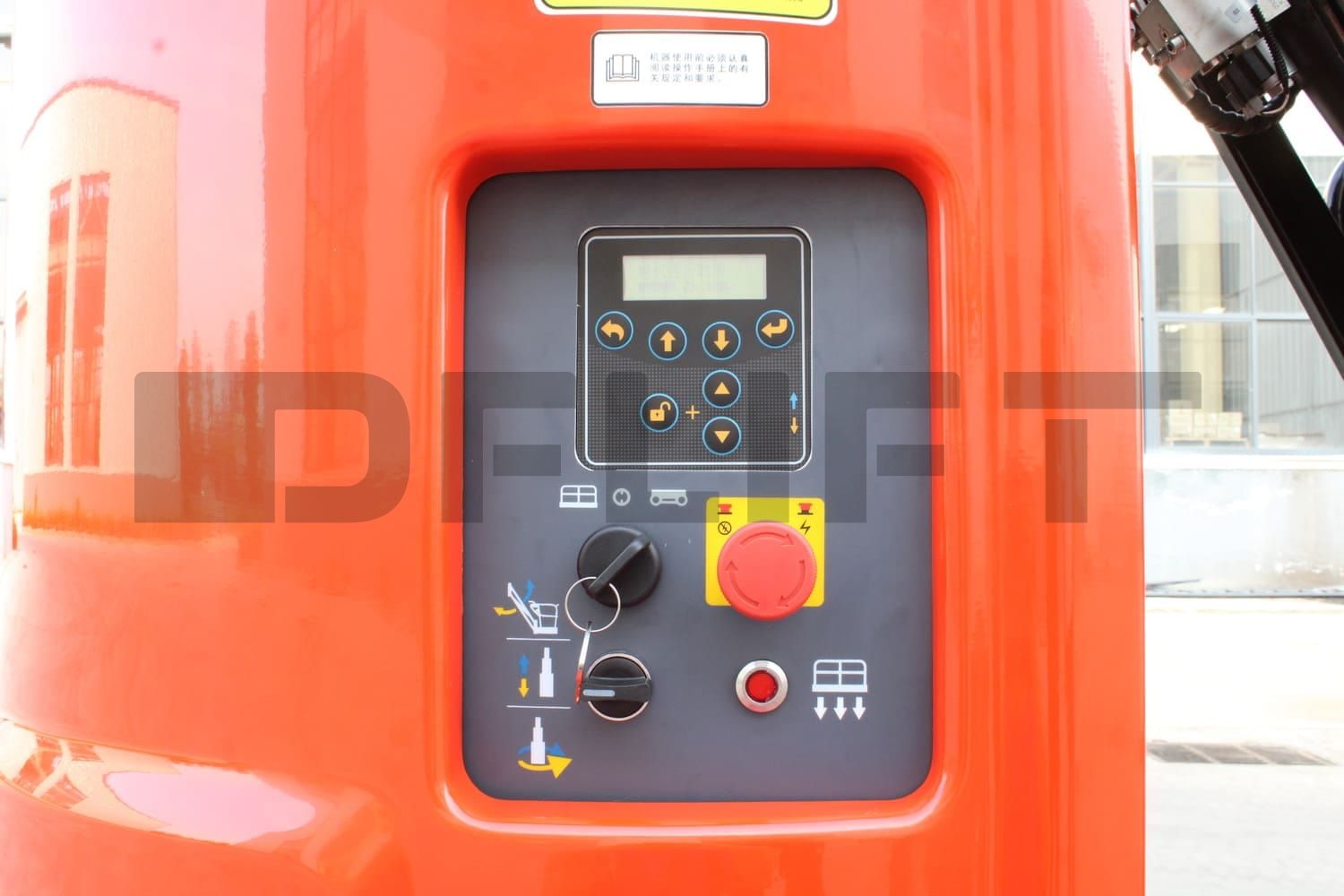

Machine control panel

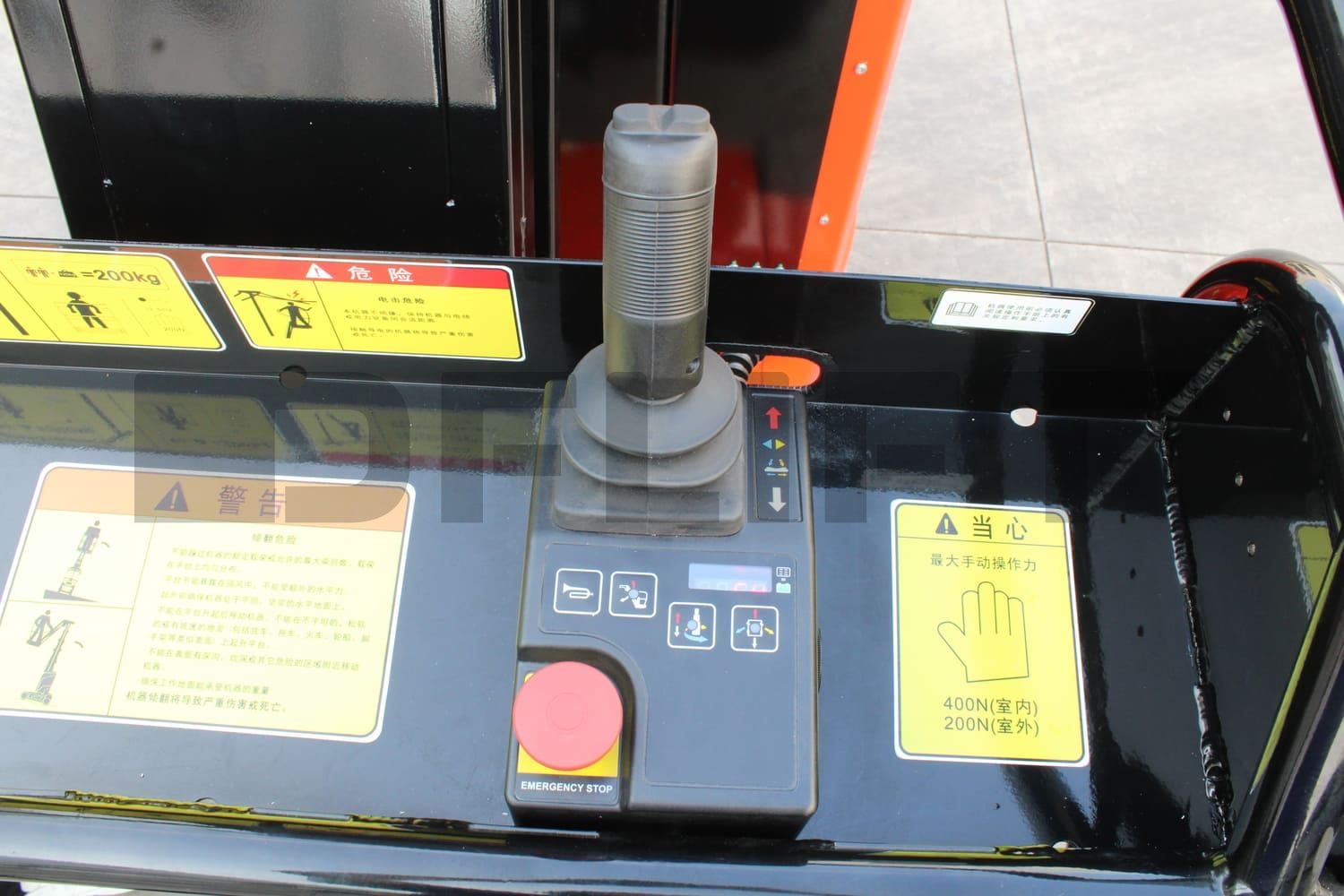

Platform control handle

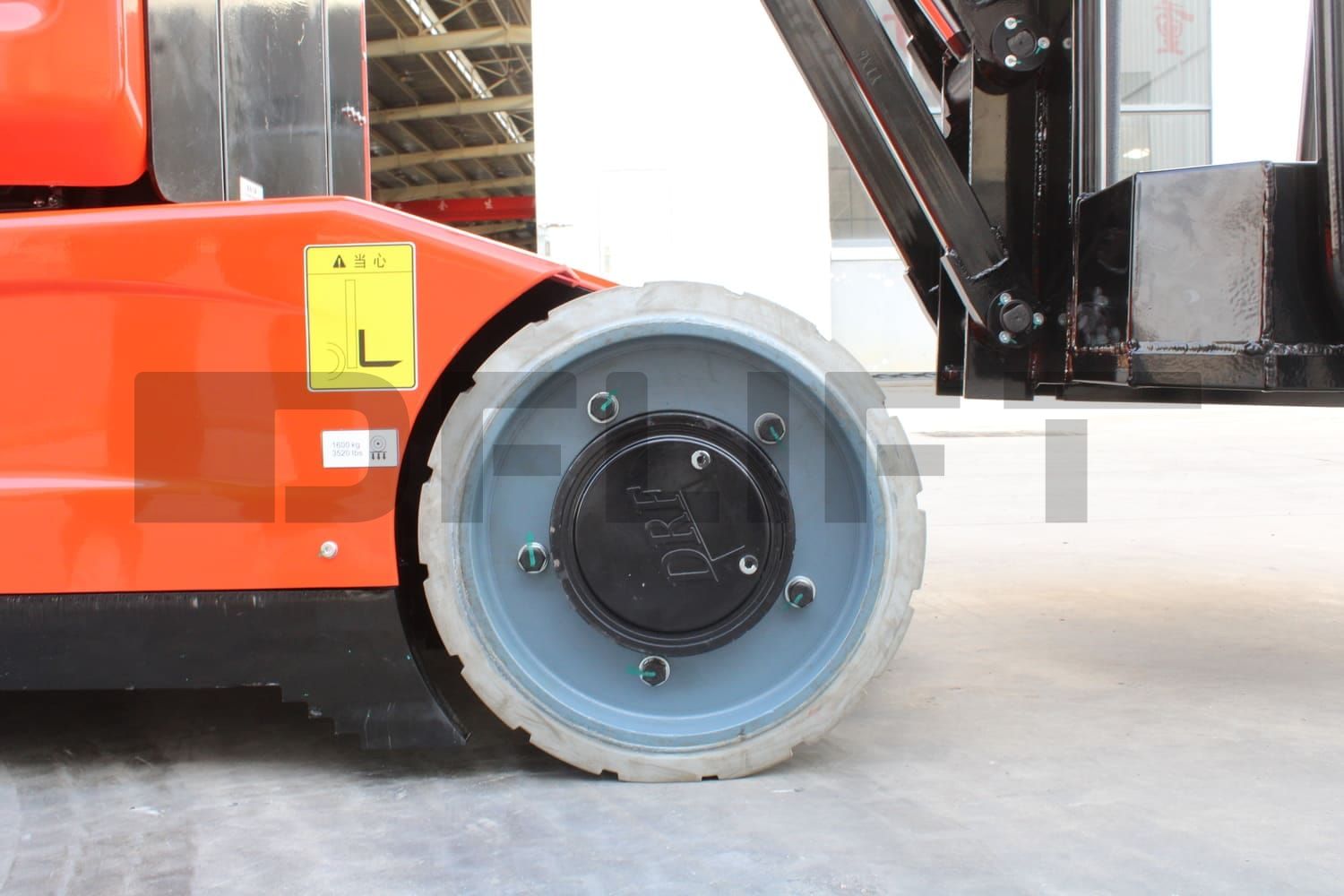

Tiro

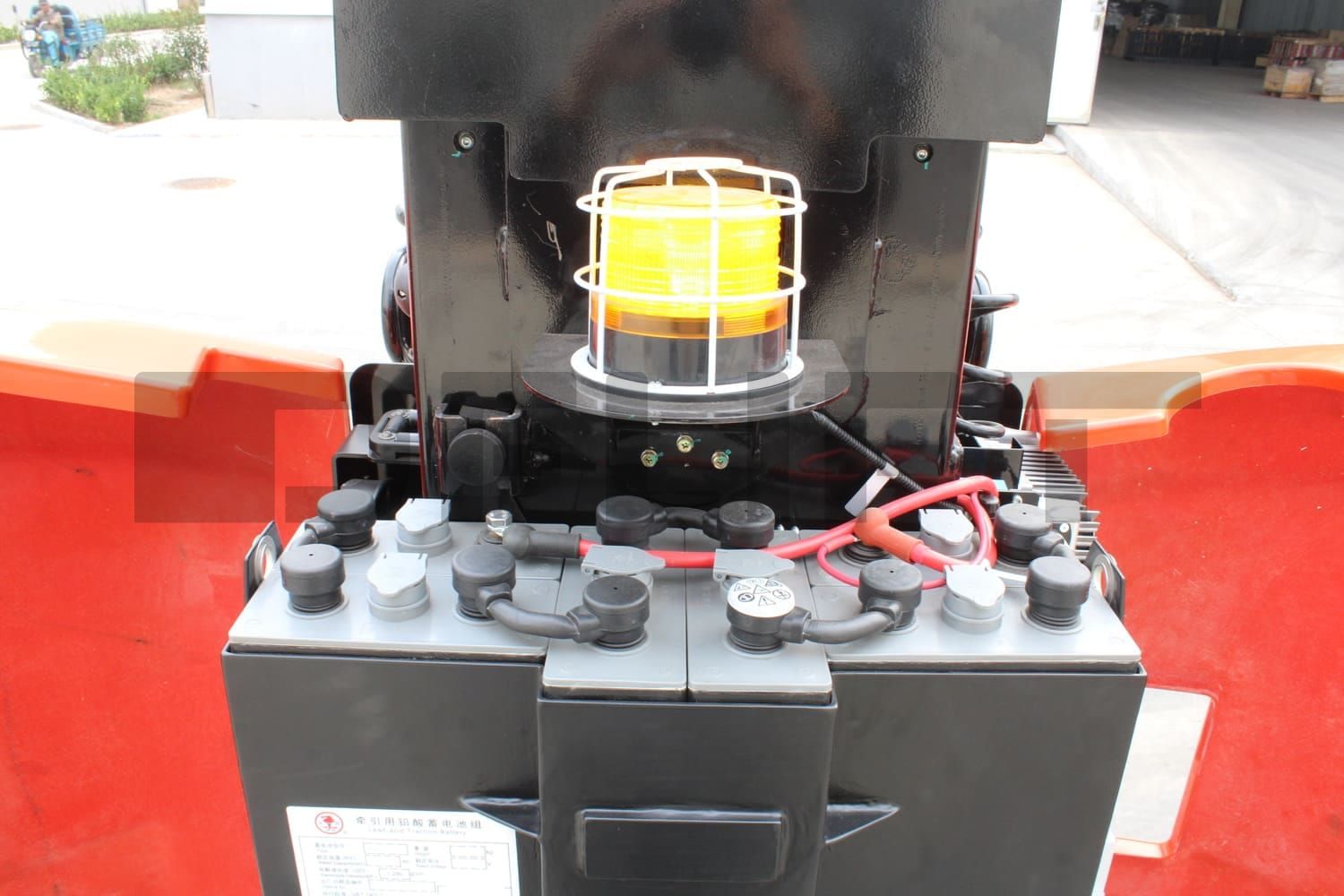

Warning light

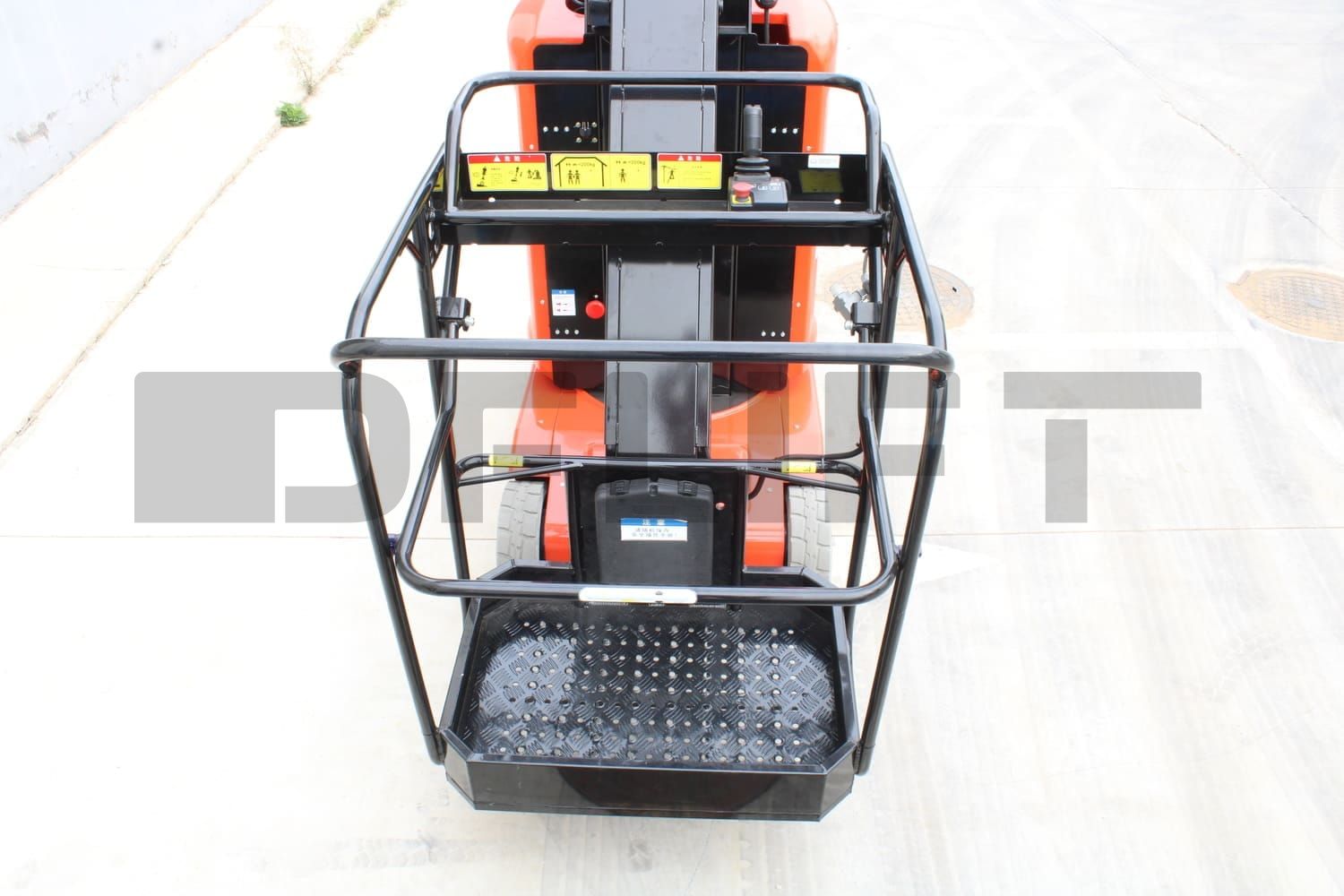

Work platform
